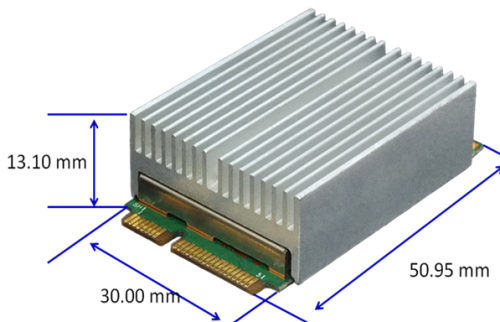

WM-1431 is a 802.11ax Dual Band Mini PCIe wireless
module, backward compatible with 802.11ac/a/b/g/n, the module was built
based on MaxLinear WAV654 chipset (previous chipset named Intel WAV 654)
and Skyworks FEMs, which provide advanced 2x2x2 Concurrent Dual Band
802.11ax Wi-Fi systems. They are designed to support very high
throughput, low latency, extra low host CPU consumption and enhanced
reach and coverage. The PCIe 3.0 interface and Super Thick MAC
acceleration allow the MaxLinear Home Wi-Fi Chipset WAV600 Series device
to be connected to any network or media processor with minimal CPU load
impact on the host processor, even with the maximum throughput of a 2x2
+ 2x2 802.11ax system (up to 2.5 Gbps effective throughput).
WM-1431 supports 2T2R (2x2) Wi-Fi 6 technology,
which runs up to 2,402Mbps at 5G or runs up to 574Mbps at 2.4G in
theory. The WM-1431 supports 20/40 bandwidth in 2.4GHz band and
20/40/80/160 MHz bandwidth in 5GHz band.
IEEE 802.11 ax/ac/a/b/g/n
Standard Mini PCIe Interface
2 data streams with 2 x I-PEX connectors
2.412 ~ 2.472 GHz (2.4 GHz Band)
5.150 ~ 5.825 GHz (5.0 GHz Band)
Operating Temperature Range
-10°C to +70 °C (Operating temperature)
Power – TX
Sensitivity – RX
802.11b @11M :20 dBm ±2 dBm
802.11n/HT20 @ MCS7 : 16 dBm ±2dBm
802.11n/HT40 @ MCS9 : 15 dBm ±2dBm
802.11ac/HT20 @ MCS0 : 20 dBm ±2dBm
802.11ac/HT40 @ MCS7 : 16 dBm ±2dBm
802.11ac/VHT80 @ MCS9 : 15 dBm ±2dBm
802.11ax @ MCS11 :TBD dBm a ±2dBm
USA
EU Region
Japan
Canada
Above Certifications are under evaluation, please contact us for further information.
